CNC Router - Motor Mounts

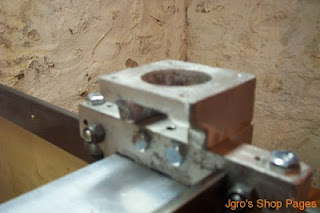

The Y Axis motor mount was an old motor mount I had created for a previous machine.  I just had to add some holes to it and add some tapped holes to the angle iron that is supporting the ways.

For the X Axis, I created a foam pattern and cast it.  You can see the foam pattern in this picture in the upper left.

Here it is mounted to the machine
